MAGBED is a permanent magnet workholding system designed for use in a variety of machining environments.

MAGBED MB Complete Series

MAGBED MB Complete Series

"Expand Horizontally to Match the Workpiece Size" Flexible solution for machining large workpieces

  • No electricity required
  • Ultra-strong permanent magnets
  • Removable ON/OFF operating bar
  • Modular segmented structure enables partial magnetic activation

MAGBED MB Complete Series

Product Details





MAGBED MB Complete Series

Product Parameters

◀ Swipe the table left or right to see the full contents ▶
Model Size (mm) Protection Block 52X52 (mm) Weight (kg)
3MB4035 275 X 305 X 115 24 86
4MB5540 500 X 367 X 115 40 138
5MB6545 625 X 430 X 115 60 202
6MB8050 750 X 492 X 115 84 278
8MB10055 1,000 X 555 X 115 128 446

MAGBED MB Complete Series

Product Features

MB Complete Series
Expand Horizontally to Match the Workpiece Size
Flexible solution for machining large workpieces

◆ Expand Horizontally to Sufficiently Handle the Workpiece Size

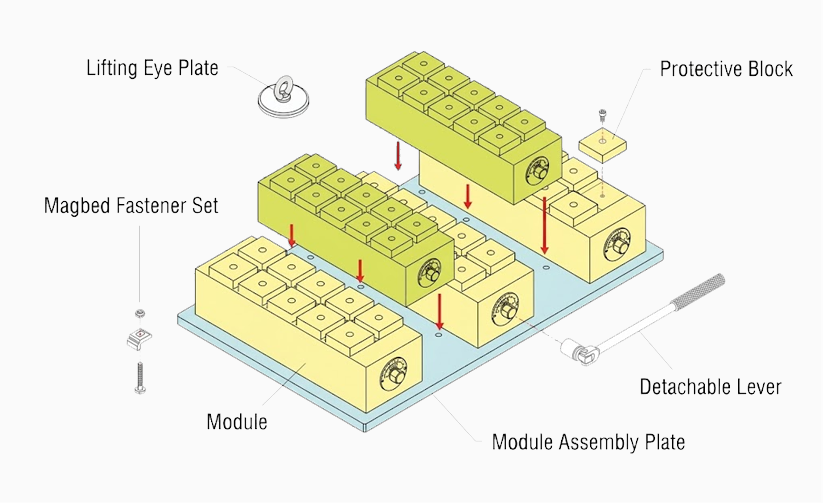

The MB Complete Series is a finished product line created by continuously assembling standard MB Series modules in a horizontal (X-axis) direction to scale up the length of the workholding system.
It can flexibly handle workpieces regardless of their length, and provide outstanding efficiency for long bed machining and large mold applications.



1. Long-Lasting Magnetic Force
• Features ultra-strong magnetic force exceeding comparable products, and provides a semi-permanent service life without significant loss of magnetic force.

2. 5-Year Quality Warranty• The product is backed by a 5-year quality warranty based on its excellent durability and magnetic force retention.

3. Minimized Components, Easy Maintenance
• The durability-focused design minimizes the number of components and significantly reduces the possibility of failure. When a consumable component, such as a protective block, becomes worn, only the individual block needs to be replaced and maintenance is made more efficient.

4. Expedited Delivery Within 72 Hours

• The proprietary assembly design enables expedited delivery within 72 hours after an order is placed.
