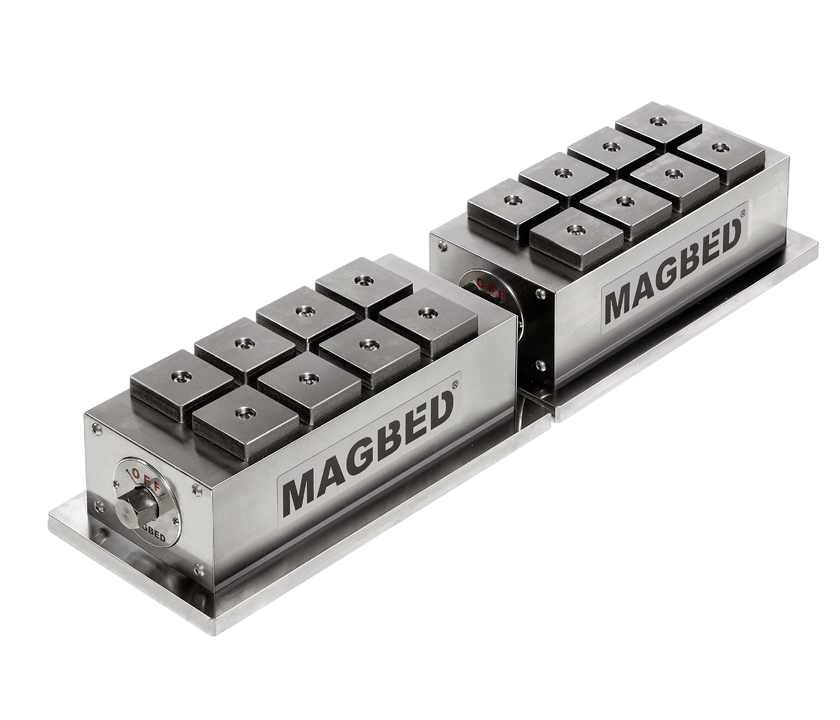

MAGBED MB Dual Series
"Expand the Work Area Vertically with a Dual Configuration" Suitable for machining large workpieces
- Improved Machining Efficiency with a Larger Work Area
Product Information
MAGBED is a permanent magnet workholding system designed for use in a variety of machining environments.
MAGBED MB Dual Series
Product Details
MAGBED MB Dual Series
Product Parameters
◀ Swipe the table left or right to see the full contents ▶
| Model | Size (mm) | Protection Block 52X52 (mm) | Weight (kg) | ||
|---|---|---|---|---|---|
| A | B | C | |||
| MB35D | 240 | 316 | 356 | 8 | 32 |
| MB40D | 302 | 378 | 418 | 10 | 39 |
| MB45D | 365 | 441 | 481 | 12 | 45 |
| MB50D | 427 | 503 | 543 | 14 | 51 |
| MB55D | 490 | 566 | 606 | 16 | 59 |
MAGBED MB Dual Series
Product Features
MB Dual Series
Expand the Work Area Vertically with a Dual Configuration
◆ Improved Machining Efficiency with a Larger Work Area
The MB Dual Series connects modules in the vertical (Y-axis) direction for wider workpieces that are difficult to handle through horizontal expansion alone.
It provides stable contact even when machining wide, large plates.
1. Long-Lasting Magnetic Force
• Features ultra-strong magnetic force exceeding comparable products, and provides a semi-permanent service life without significant loss of magnetic force.
2. 5-Year Quality Warranty
• The product is backed by a 5-year quality warranty based on its excellent durability and magnetic force retention.
3. Minimized Components, Easy Maintenance
• The durability-focused design minimizes the number of components and significantly reduces the possibility of failure. When a consumable component, such as a protective block, becomes worn, only the individual block needs to be replaced and maintenance is made more efficient.
4. Expedited Delivery Within 72 Hours
• The proprietary assembly design enables expedited delivery within 72 hours after an order is placed.
